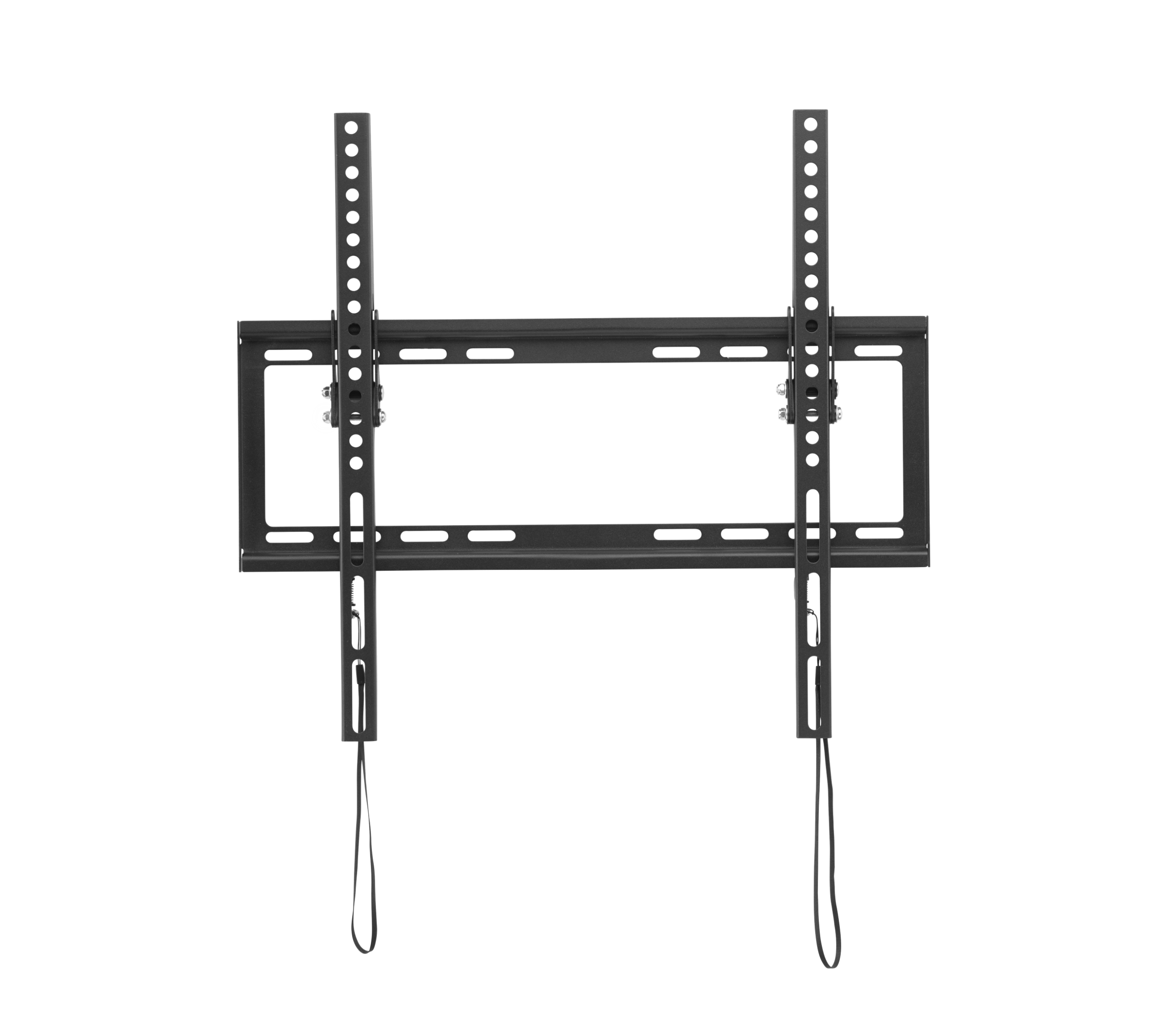

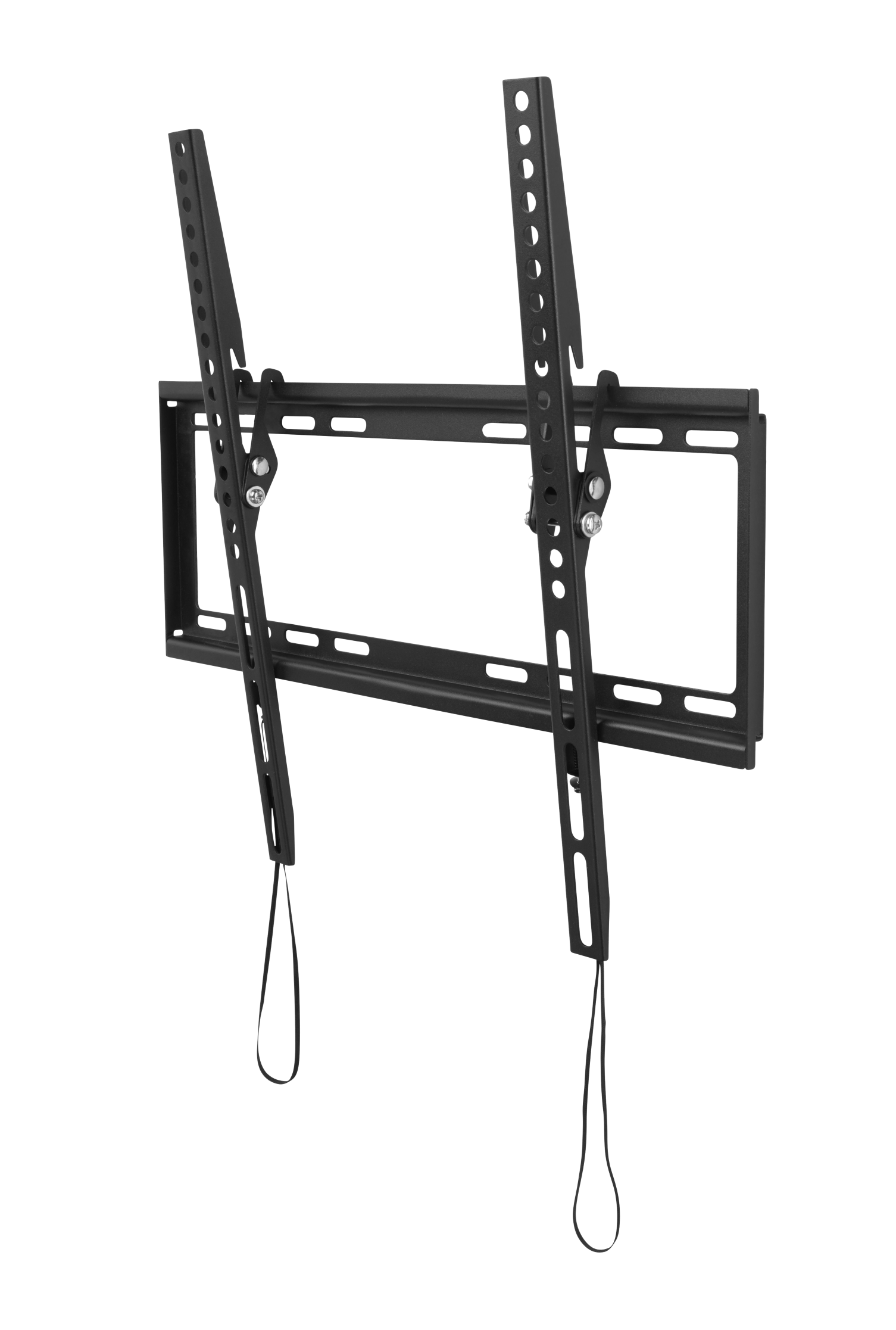

Universal TV Wall Mount TILT

WM1421

TV Wall Mount with tilt adjustment. Suitable for Televisions from 32 to 65 inches and compatible with VESA sizes up to 400 x 400. All mounting materials included.

Manual and Documents

Tech drawing

PDF, 47KB

View PDF

Tech drawing backplate

PDF, 29KB

View PDF

Manual

PDF, 5MB

View PDF

Specifications

General

Screen size
32-65" (81-165cm)
VESA
100x100, 100x200, 200x100, 200x200, 300x200, 300x300, 400x300, 400x400
Max weight
40 kg
Movement
Tilt
Min Wall distance
20 mm
Max Wall distance
20 mm
Dimensions (LxWxH / cm)
20.5x46.5x42.2
